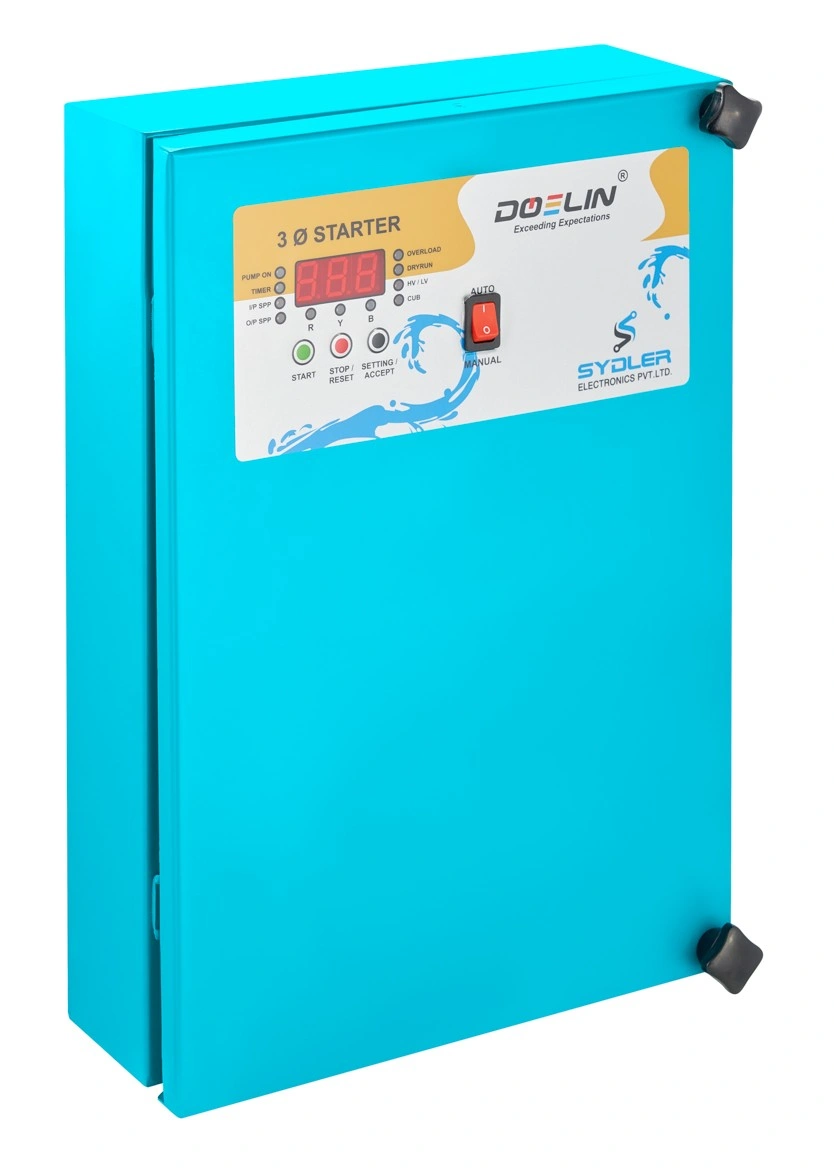

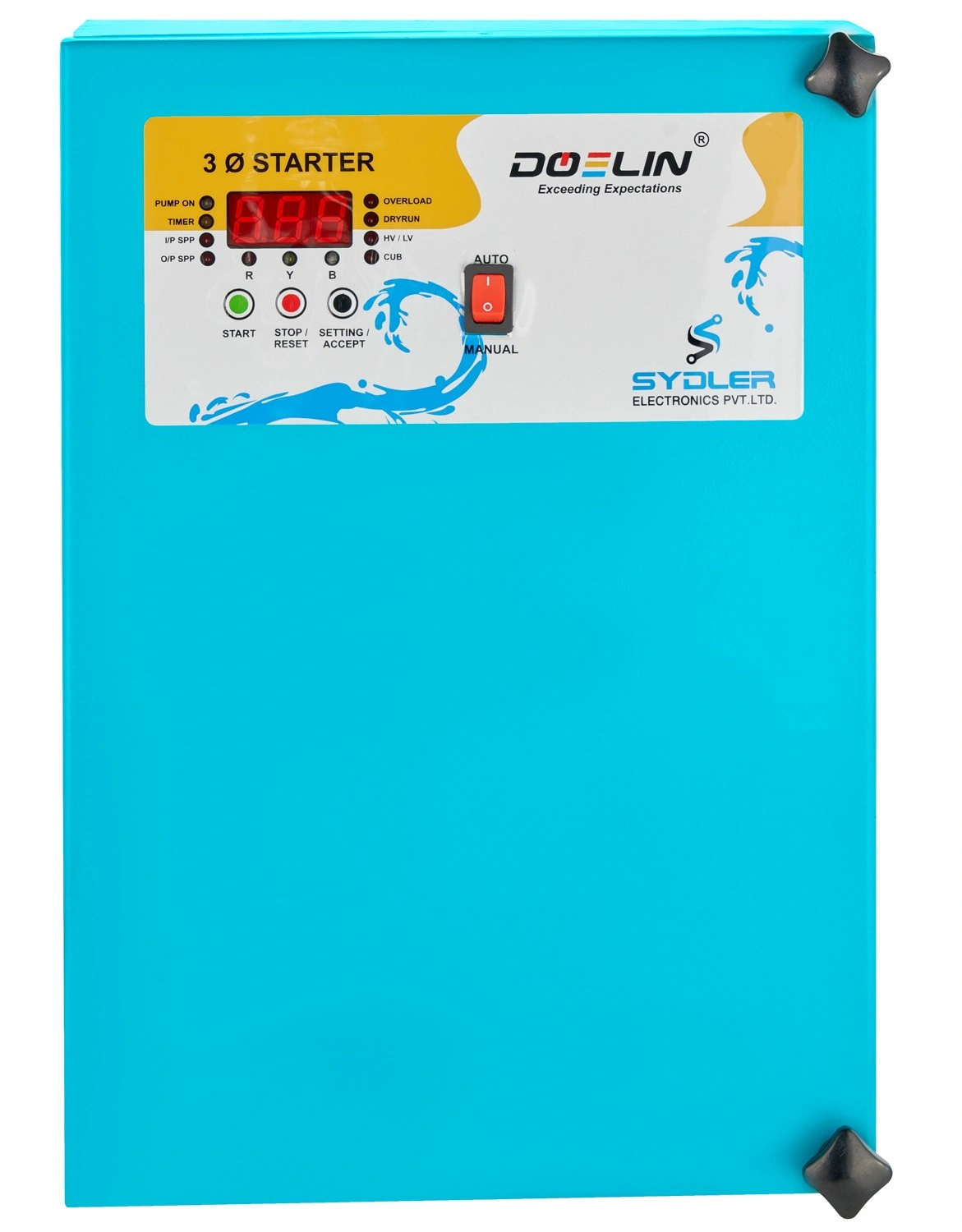

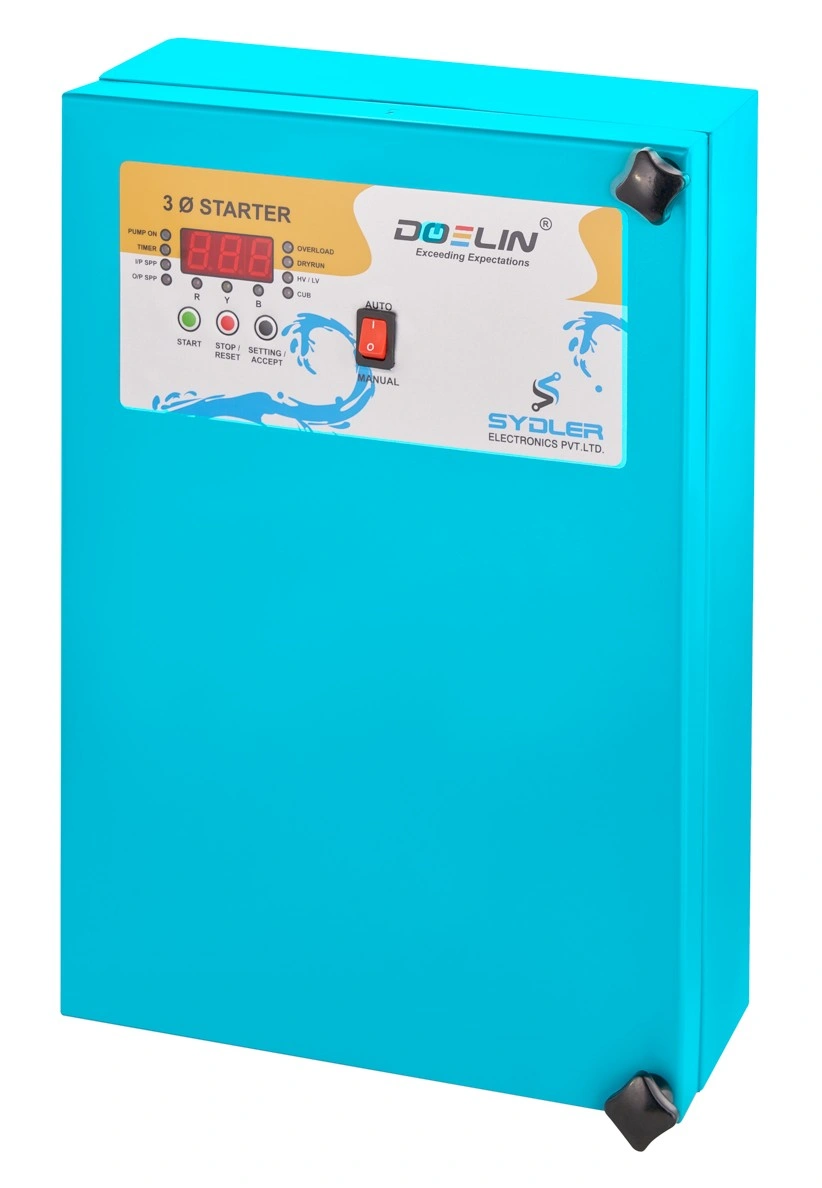

Three Phase Fully Automatic Star Delta Panel
₹18,000.00 – ₹220,000.00
Unmatched Control and Efficiency
Introducing the Three Phase Fully Automatic Star Delta Panel, meticulously designed for the seamless operation of three-phase motors. This panel stands out for its advanced features and user-friendly digital display, making it an essential tool for industries that rely on high-performance motor control. With this panel, efficiency and reliability come as standard, ensuring your motors run smoothly and effectively.
Versatile Current and Voltage Range
The Three Phase Star Delta Panel offers a flexible current range to meet diverse application needs, supporting ratings of 25, 40, 50, 95, and 200 Amps. Additionally, it operates within an expansive voltage range of 250Vac to 480Vac at 50Hz. The current capability extends from 0.5A to 21A, making this panel suitable for various motor specifications. Whether you’re managing a small pump or a robust industrial motor, this panel covers all bases.
Comprehensive Protection Features
Your operational security is our priority. This Star Delta Panel is equipped with a variety of protective mechanisms to prevent electrical mishaps. It safeguards against overload conditions, dry runs, extreme high current situations, high and low voltage occurrences, phase failures (both input and output), and phase reversals. With voltage unbalance protection of up to 80V and current unbalance monitoring, you can trust this panel to safeguard your equipment and enhance longevity.
Additionally, the adjustable overload current and trip time settings allow for customization based on specific conditions, while the automatic dry run features ensure safe operation, minimizing risks. The panel also includes a Dry Run Auto Start Timer, a Pump ON timer, and an optional Cyclic Timer Mode, giving you unparalleled control over your processes.
The Three Phase Fully Automatic Star Delta Panel encapsulates the ideal blend of technology and functionality, making it a vital addition for anyone looking to optimize their three-phase motor operations. Experience peace of mind with dependable performance and extensive protective features in one comprehensive solution.
Description

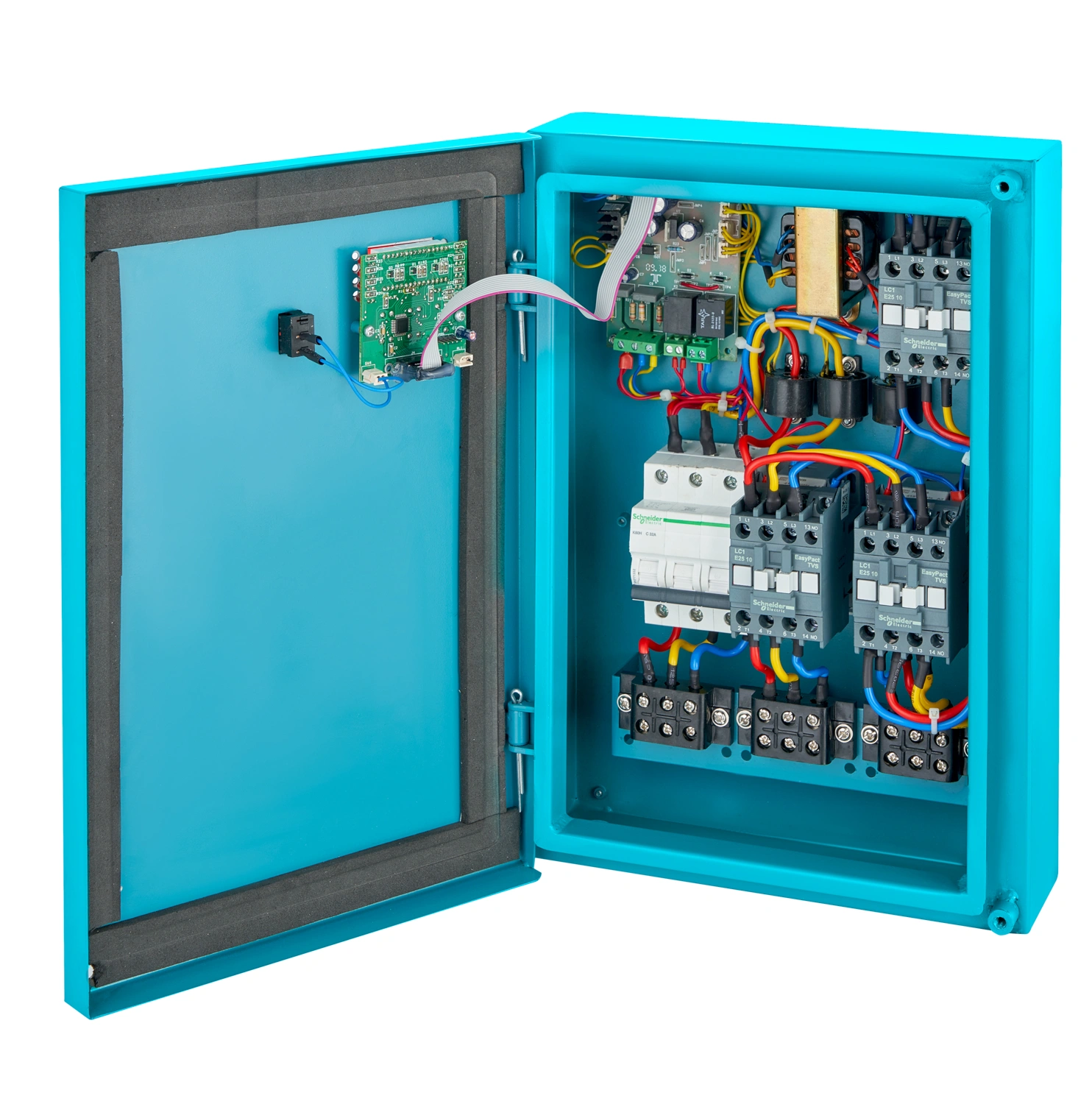

- It is a sophisticated electrical control panel designed for the efficient operation of three-phase motors
- It has Digital Display with user friendly keys
- Current range (25 / 40 / 50 / 95/ 200 Amp) as per requirement
- Wide operating voltage range of 250Vac-480Vac at 50Hz
- The current range of the starter panel spans from 0.5A-21A
Prevention Against
- Overload
- Dry Run
- Extreme high current
- High voltage
- Low voltage
- Phase Failure from input side (input SPP)
- Phase Failure from output side (output SPP)
- Phase Reversal
- Voltage unbalance up to 80V
- Current unbalance
Adjustable
- Overload current and trip time
- Dry Run current and trip time
- Current unbalance
- High voltage and low voltage
- Dry Run Auto Start Timer
- Pump ON timer
Cyclic Timer Mode (Optional)
- ON time
- OFF time
Details
| Capacity | 12.5 HP, 15 HP, 20 HP, 25 HP, 45 HP, 100 HP |
|---|---|
| Water Level Controller | Without WLC, With WLC |
