Overview of the Advanced Flow Control System

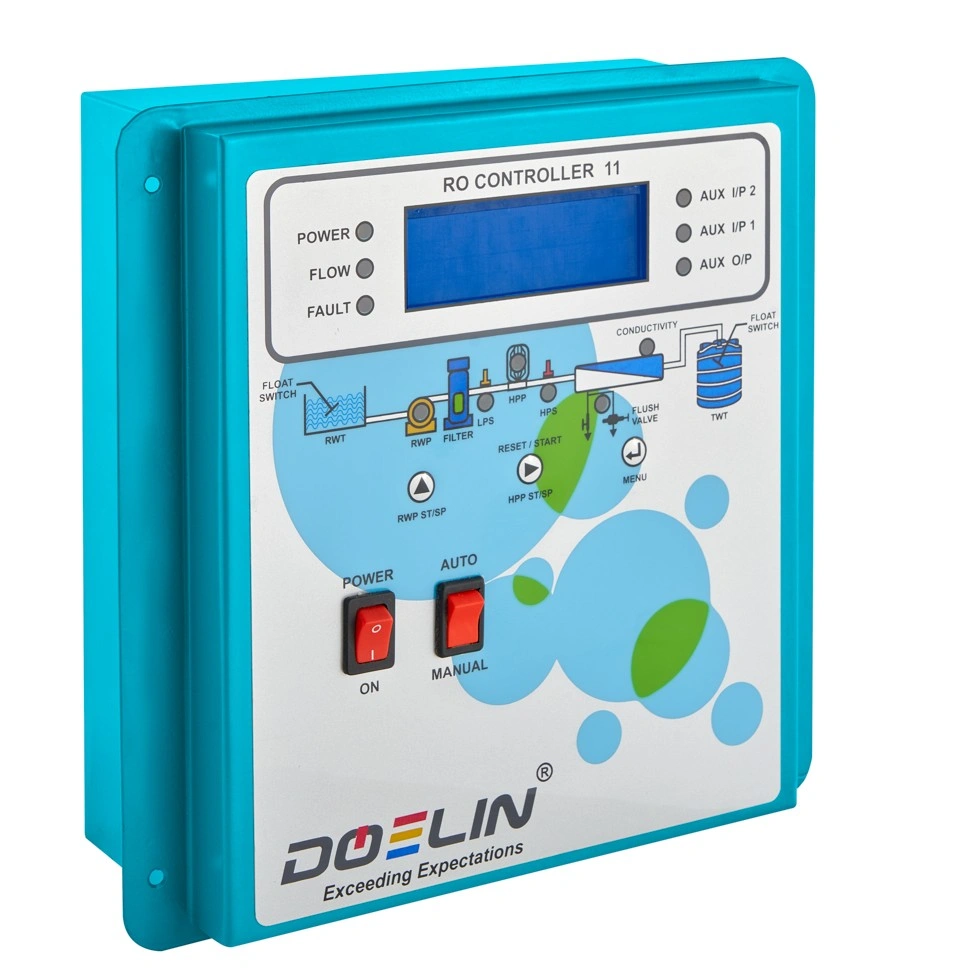

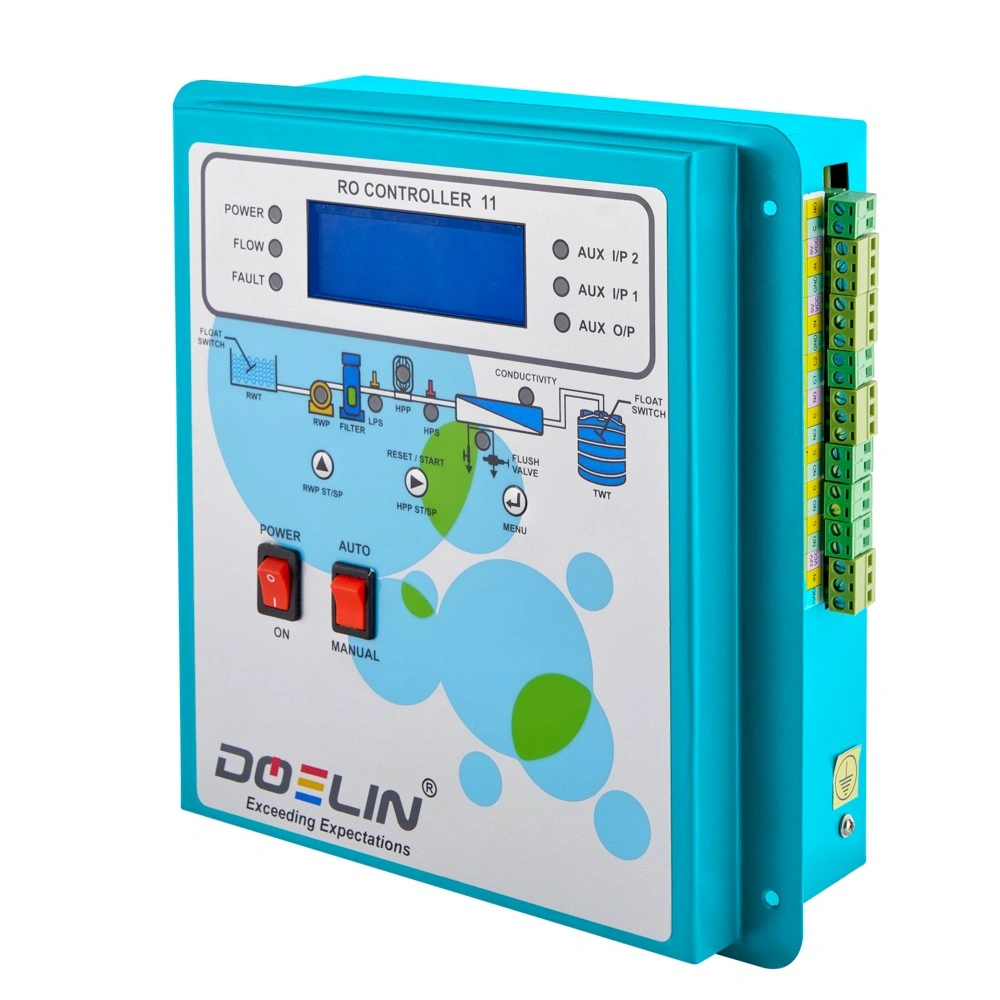

Introducing the Advanced Flow Control System, your ultimate solution for efficiently managing flow measurements in various applications. Designed with a premium LCD display, this state-of-the-art system simplifies programming and provides real-time process status updates across two lines. This user-friendly interface, engineered for straightforward on-site programming, enables seamless control of your flow processes, empowering you to enhance operational performance.

Key Features and Benefits

Equipped with an innovative two-point flow sensing capability, the Advanced Flow Control System guarantees accurate monitoring and control of flow rates. The inclusion of a 4-20 mA transmitter input, which features a settable span, allows for versatile adaptability to different operational requirements. This flexibility ensures that your system functions optimally across various conditions, reducing downtime and improving reliability.

Moreover, the system’s dual flow measurement capability enhances overall process management by incorporating low flow alarms and very low flow trips, ensuring that any inconsistencies are promptly addressed. Whether you’re in manufacturing, agriculture, or any industry requiring precise flow control, this system is excellent for safeguarding operations and maximizing efficiency.

Technical Specifications

The Advanced Flow Control System is built to meet the diverse electrical requirements of modern facilities. The primary specifications include:

• Supply Voltage: 230VAC ±10%, 50Hz for most applications
• For the 11M model (up to 3 HP): 400VAC ±10%, 50Hz
• For the 13M model: 400VAC ±10%, 50Hz

With its robust technical capabilities and ease of use, the Advanced Flow Control System is an investment you won’t regret. Elevate your operational efficiency and join the ranks of industry leaders who trust this exceptional system to monitor and manage their processes effectively.

Description
3 key interface for control and on-site programming.
Premium LCD display for programming and process status (2 lines).
Two-point flow sensing.
4-20 mA transmitter input with settable span.
2 flow measurements, with low flow alarm and very low flow trip.

Specifications
Supply Voltage :
230VAC ±10%, 50Hz. For 11M model (Upto 3 HP),
400VAC ±10%, 50Hz. For 13M &33M model (Upto 7.5HP)
Mounting : Panel Mounting.
Dimensions : 225(W) x 255(H)x 120 (D)
Cutout Size : 196 (W) x 226 (H).

Input / Output
Control Input For Auto Mode
Auto MPV Interface -2 Nos.
Raw Water Tank Empty (RWL)
Treated Water Full Level (TWL)
High Pressure (HP)
Low Pressure (LP)
Flow sensor – 1 nos. (Regular)
Flow sensor – 2 nos. (Premium)
4- 20 mA Transmitter Input – 1nos. (Premium)

Control Outputs for Auto Mode
Raw Water Pump on/off ( 1 Ph @ 3HP and 3Ph @ 7.5HP)
High Pressure Pump on/off ( 1 Ph @ 3HP and 3Ph @ 7.5HP)
Flush valve Solenoid on/off (230VAC , 5A)
“HP PUMP ON” feedback (Pot Free)
Dosing Pump Power Output. (230VAC , 5A)
Auto MPVs Power Output. (230VAC , 5A)

Control
Controls : 3 Programming/ Pump Control Keys, 1 Control Switch (Power On/Off )

Indication
Premium : 4X16 LCD Display, LED Indications for: LPS,HPS, Flush Solenoid On, RWP On, HPP On, and Aux1 & 2 Inputs
